Wavelength selection

Broad Bandpass Filters

Keep a wider band.
Look at the whole response.

Start with the wavelength interval you want to retain. Compare both edges and the response inside that interval to find a useful starting design.

Explore models & spectra ↓How to choose ↓

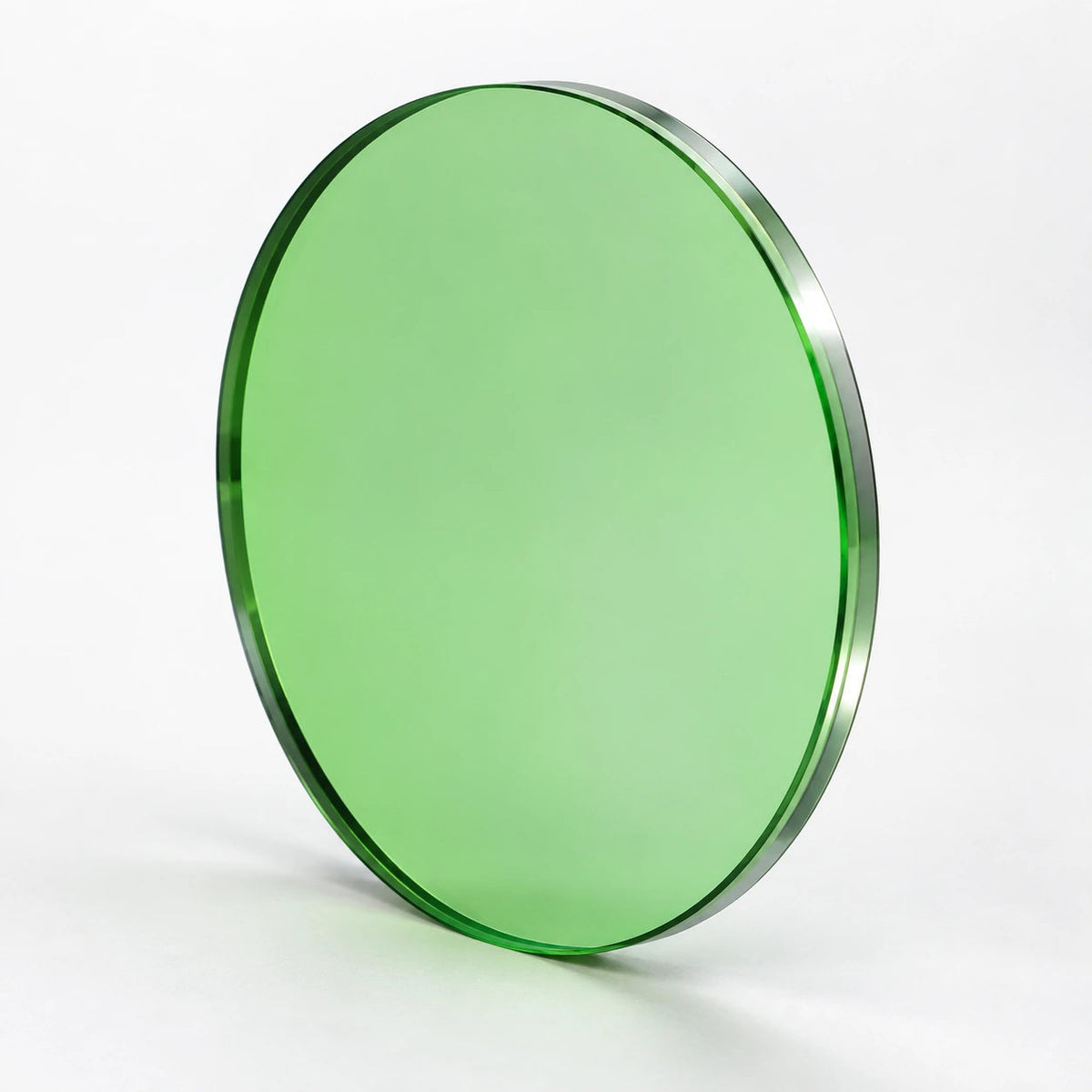

G2810 generated product illustration, one model in the Broad Bandpass family
G2810 illustration · appearance varies by model.

FIND YOUR STARTING POINT

How to choose
within this family.

01

Define both ends of your useful band

Identify the shortest and longest wavelengths your system needs to retain. Compare both boundaries with each model’s curve, rather than selecting by the peak wavelength alone.

02

Compare transmission across the band

A high peak does not mean every wavelength passes equally. Check transmission at your important wavelengths and review the shape between them. FWHM describes width at half the peak, not a uniformly transmitting region.

03

Check what else reaches the detector

Inspect secondary transmission regions and the response outside your useful band. A wider passband can also admit unwanted light within it; compare the complete measured curve with your source and detector.

A different optical task?

Related applications.

Industrial & Machine Vision

Inspection, detection, sorting and image contrast.

Imaging & Photography

Manage exposure, unwanted wavelengths and reflection.

Research & Instrumentation

Spectral selection, beam paths and measurement systems.

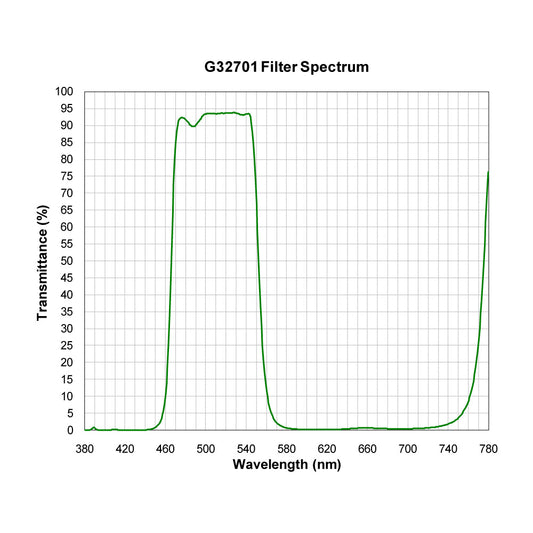

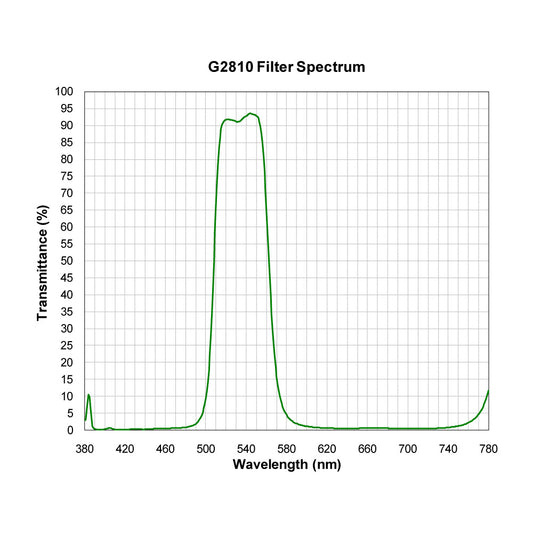

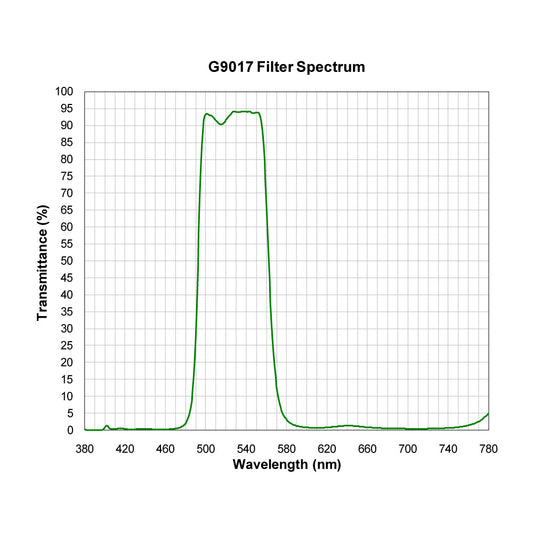

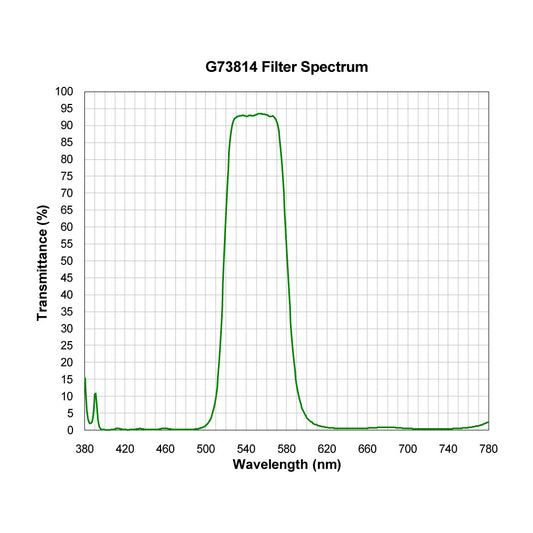

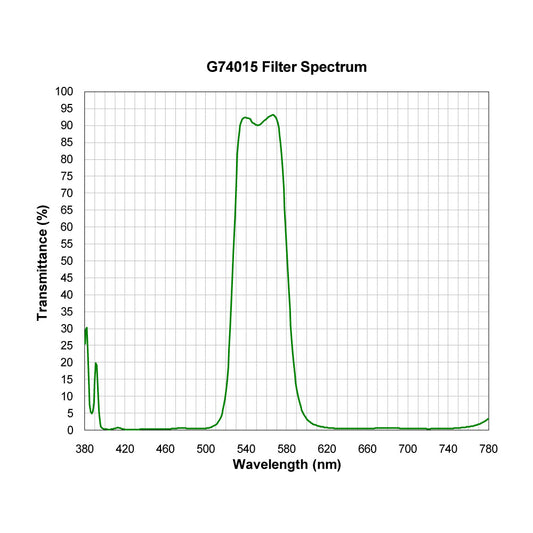

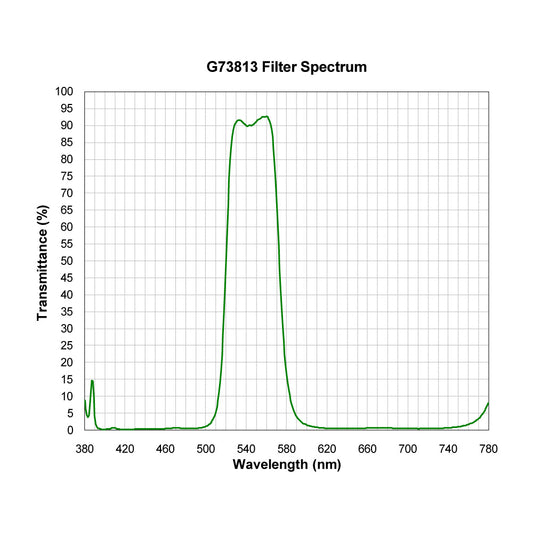

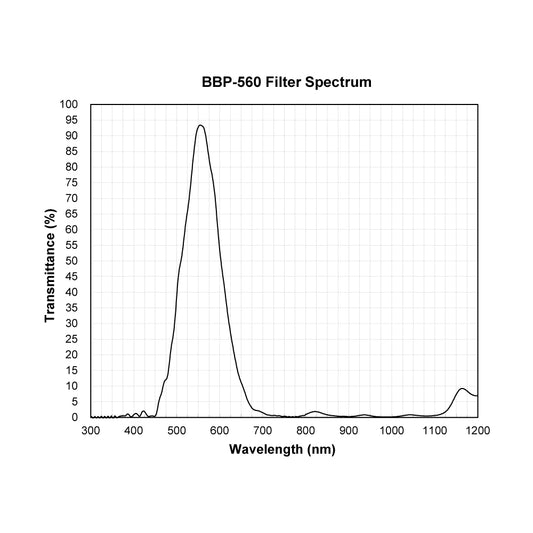

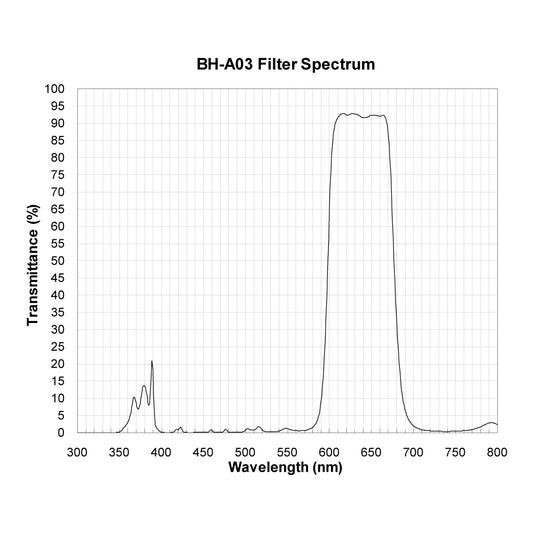

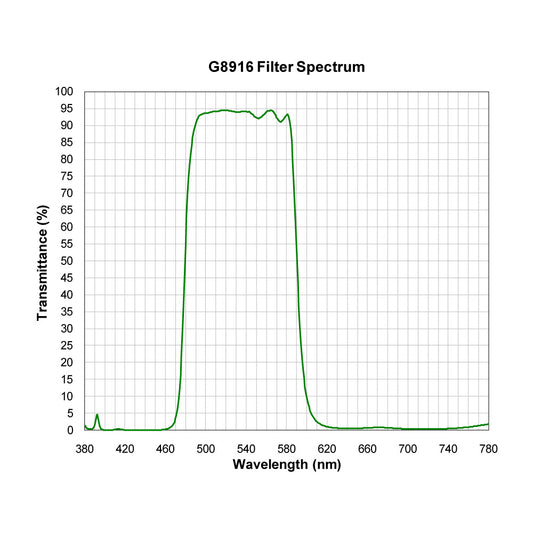

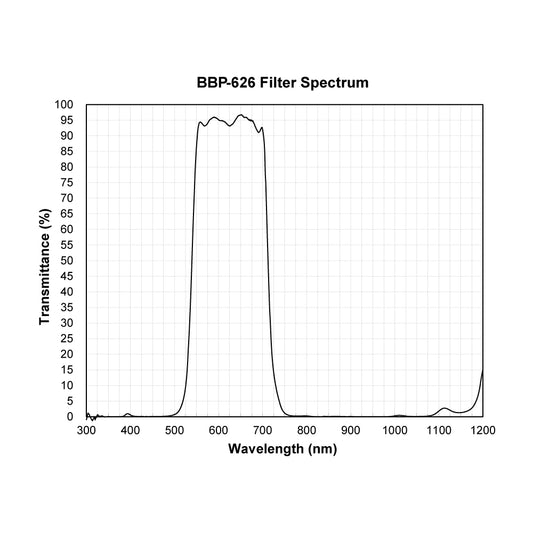

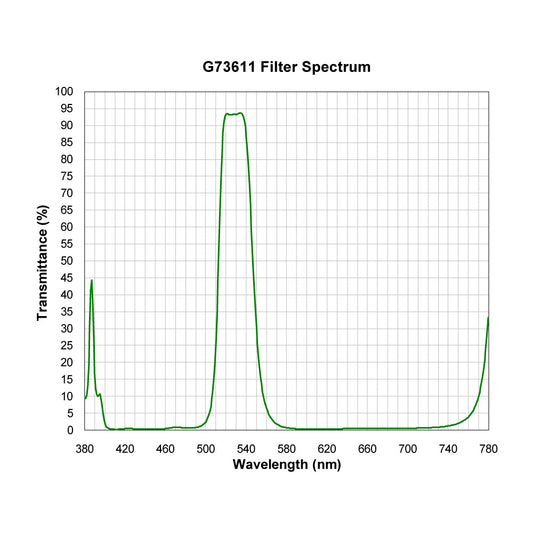

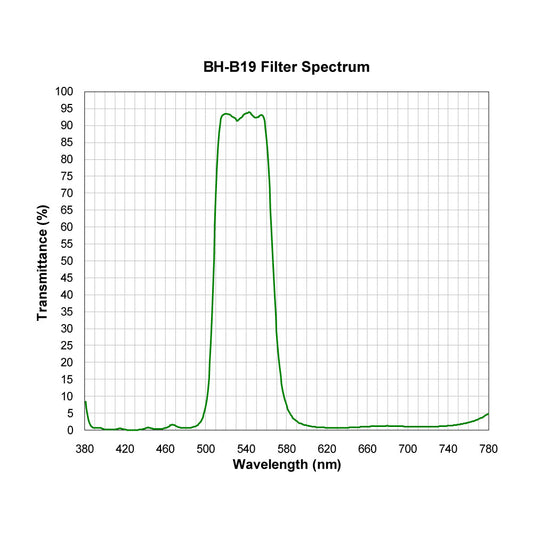

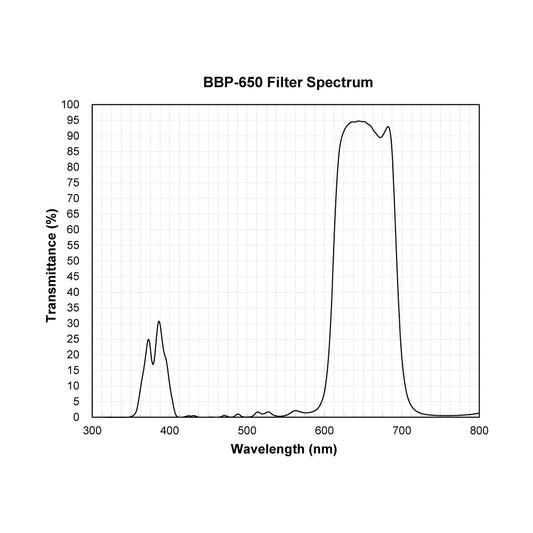

PRODUCT MODELS & SPECTRA

Explore the measured response.

15 models in this collection.
