Color & lighting filters

Dichroic Color Filters

Explore optical color through hard dielectric thin-film coatings. Start with a catalog reference, then define the requirements of your lighting or imaging system.

Develop color through wavelength-selective dielectric coatings.

Explore models & spectra ↓
Dichroic Color Filters

Related applications.

Architectural & Museum Lighting

Color, glare and spectral control for built environments and exhibits.

Stage, Studio & Projection

Color, patterns and beam control for performance and projection.

Imaging & Photography

Manage exposure, unwanted wavelengths and reflection.

Industrial & Machine Vision

Inspection, detection, sorting and image contrast.

PRODUCT MODELS & SPECTRA

Explore the measured response.

0 models in this collection.

Discuss the optical requirements for your project with our team.

Request for quote →

STANDARD COLORS & CUSTOM DEVELOPMENT

Color, with a
technical foundation.

KUPO offers standard dichroic color filters and custom colors tailored to your project. We can analyze your target color spectrum to develop a customized filter that meets your requirements.

Published applications include stage lighting, architectural lighting, projection and fluorescence microscopy. Suitability depends on the complete optical system.

Explore catalog references ↓

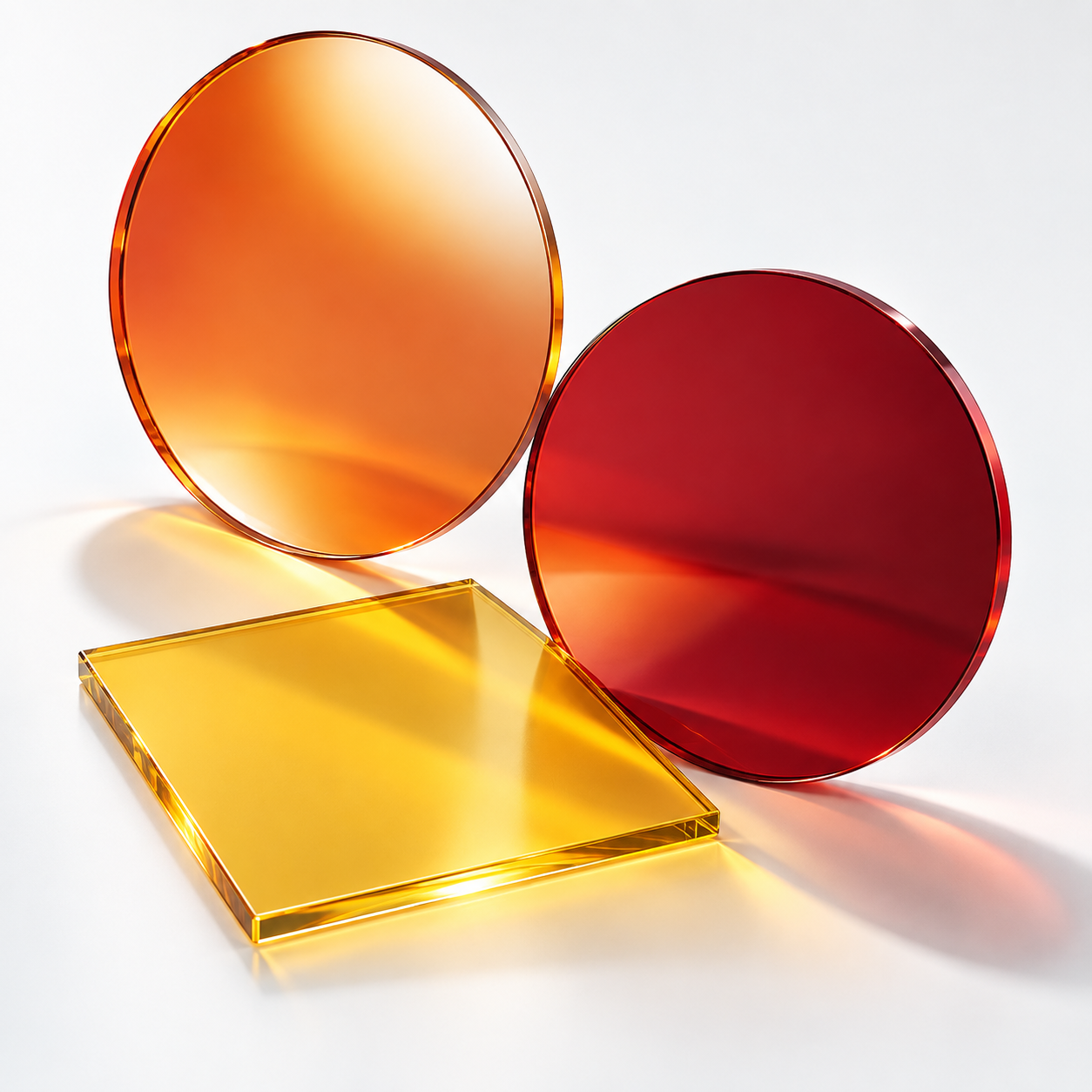

Longpass color filter concept illustration
Product concept illustration · colors shown for reference

COLOR, THROUGH THE SPECTRUM

Four families.
Distinct optical responses.

Read the transmission shape alongside your color reference. These catalog examples describe families, not every individual color code.

0° Catalog angle of incidence±5 nm at T50% Catalog normal-production tolerance

Blue, cyan & violet

Shortpass

AOI 0°
Shortpass filter catalog example spectrum Approximate image-derived trace of the family example in KUPO catalog printed page 6. Wavelength 400 to 800 nanometers, transmission 0 to 100 percent, angle of incidence zero degrees. Not an individual model measurement.TRANSMISSION / %0255075100400500600700800WAVELENGTH / nm

Catalog family example · image-derived approximation. Additional transmission bands shown in the source are retained.

View color references →Original graph · p. 6 ↗

Green & teal

Bandpass

AOI 0°
Bandpass filter catalog example spectrum Approximate image-derived trace of the family example in KUPO catalog printed page 6. Wavelength 400 to 800 nanometers, transmission 0 to 100 percent, angle of incidence zero degrees. Not an individual model measurement.TRANSMISSION / %0255075100400500600700800WAVELENGTH / nm

Catalog family example · image-derived approximation. Additional transmission bands shown in the source are retained.

View color references →Original graph · p. 6 ↗

Magenta, pink & purple

Notch

AOI 0°
Notch filter catalog example spectrum Approximate image-derived trace of the family example in KUPO catalog printed page 7. Wavelength 400 to 800 nanometers, transmission 0 to 100 percent, angle of incidence zero degrees. Not an individual model measurement.TRANSMISSION / %0255075100400500600700800WAVELENGTH / nm

Catalog family example · image-derived approximation. Additional transmission bands shown in the source are retained.

View color references →Original graph · p. 7 ↗

Yellow, amber & red

Longpass

AOI 0°
Longpass filter catalog example spectrum Approximate image-derived trace of the family example in KUPO catalog printed page 7. Wavelength 400 to 800 nanometers, transmission 0 to 100 percent, angle of incidence zero degrees. Not an individual model measurement.TRANSMISSION / %0255075100400500600700800WAVELENGTH / nm

Catalog family example · image-derived approximation. Additional transmission bands shown in the source are retained.

View color references →Original graph · p. 7 ↗

Source: supplied KUPO Dichroic catalog, printed pp. 5–7. Curves are traced from the catalog artwork, not raw measurement files. Do not use them as measured spectra for all 77 color codes. Confirm the selected model, wavelength range and operating angle for your application.

STANDARD COLOR REFERENCES

Find your color family.

Names and references follow the supplied catalog. Screen images are a guide; evaluate physical samples under your actual light source.

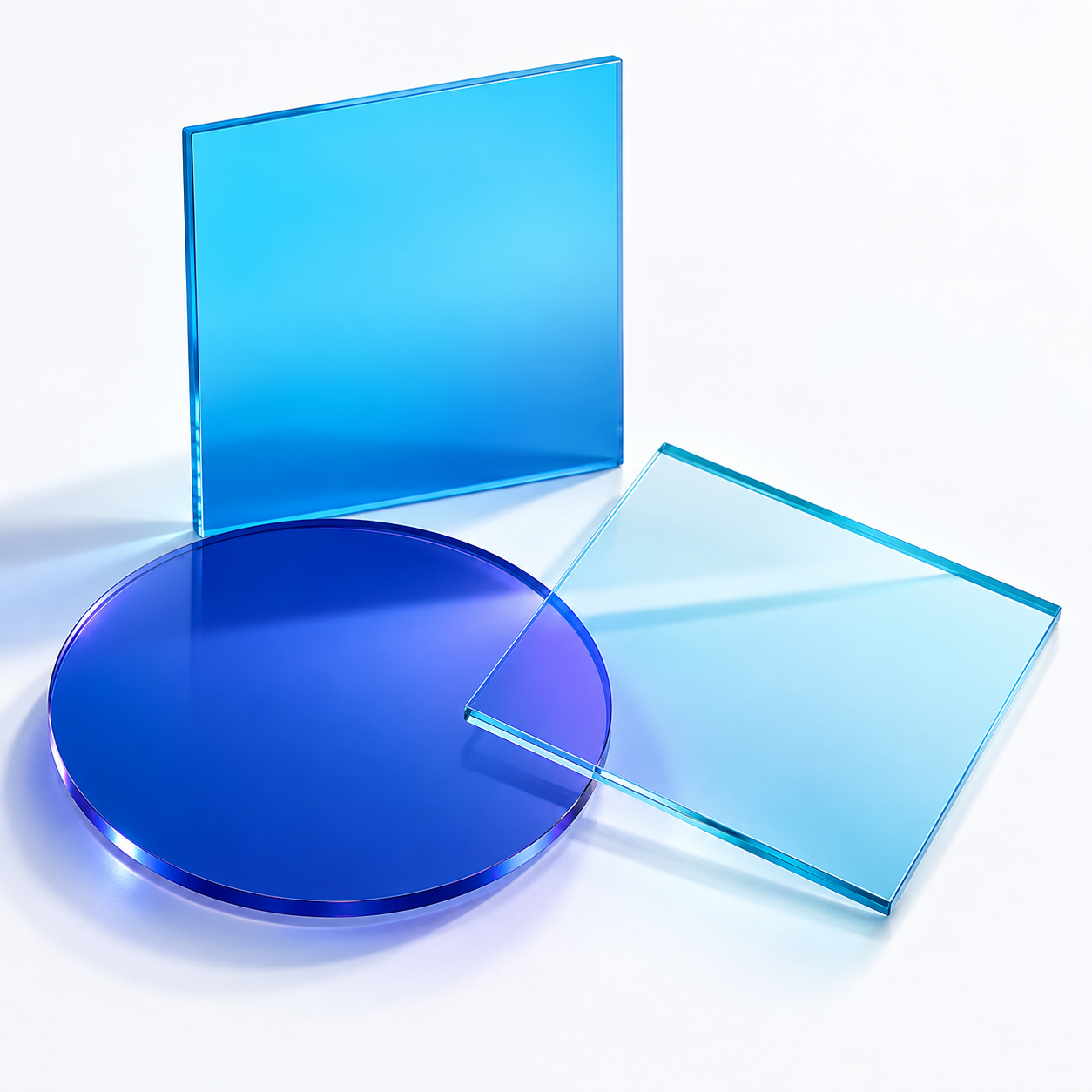

Shortpass filters concept illustration

Product concept illustration · colors shown for reference

Blue, cyan & violet

Shortpass filters

BEYOND THE SPECTRUM

Materials & specifications.

Dichroic family specifications · supplied catalog, printed p. 5
Coating Hard dielectric thin films; Ion Assistant Deposition (IAD), as described in the catalog
Spectral tolerance ±5 nm at T50% for normal production
Environmental test reference Humidity, adhesion and abrasion: MIL-M-13508C, as listed in the catalog
Substrates See substrate options below; confirm suitability for the chosen coating
Diameter / length / width Specify for your fixture or optical assembly
Dimensional tolerance / clear aperture / AOI To be agreed for the selected product and application
Price / availability / lead time Confirm when requesting a quotation

Substrate options

Catalog material information · printed p. 4
Substrate Listed thicknesses Catalog heat-resistance value
Borofloat glass 1.1, 2.0, 3.3, 3.8 mm Up to 450°C
Sodalime glass 1.1, 2.0, 2.9 mm Up to 150°C
Borosilicate glass (D263T) 0.21, 0.3, 0.55 mm Not stated
Corning Eagle XG 0.7, 1.1 mm Up to 450°C

These are catalog substrate values, not a verified operating-temperature rating for a finished filter or fixture. Confirm thermal conditions and the final coated assembly. Catalog specifications require current technical confirmation before ordering.

FROM COLOR REFERENCE TO PROJECT

Bring a sample
into the conversation.

Share the color code, light source, working angle, dimensions and quantity. Use a physical sample to assess the result in your space.

Designer Sample Program →

Source & review status

Transcribed from the supplied KUPO Dichroic catalog, printed pages 4–7 (PDF pages 6–9). Product visuals are newly created concept illustrations inspired by the filter families; evaluate actual samples for color and finish.

Reference names preserve the source spelling. Catalog graphs are family examples and are not presented as individual measurements for every color code.
