Match the full source band.
Compare the source emission spectrum with the filter curve. Include the source bandwidth, rather than relying on the nominal wavelength alone.
Designer Sample Program ↗Anti-Reflective Coatings
MEASURED OPTICAL RESPONSE
Original published sample data.
Nearest measured point shown; no interpolation or extrapolation. Original sample values are preserved, including values outside 0–100%. Samples are selection references, not production acceptance limits.

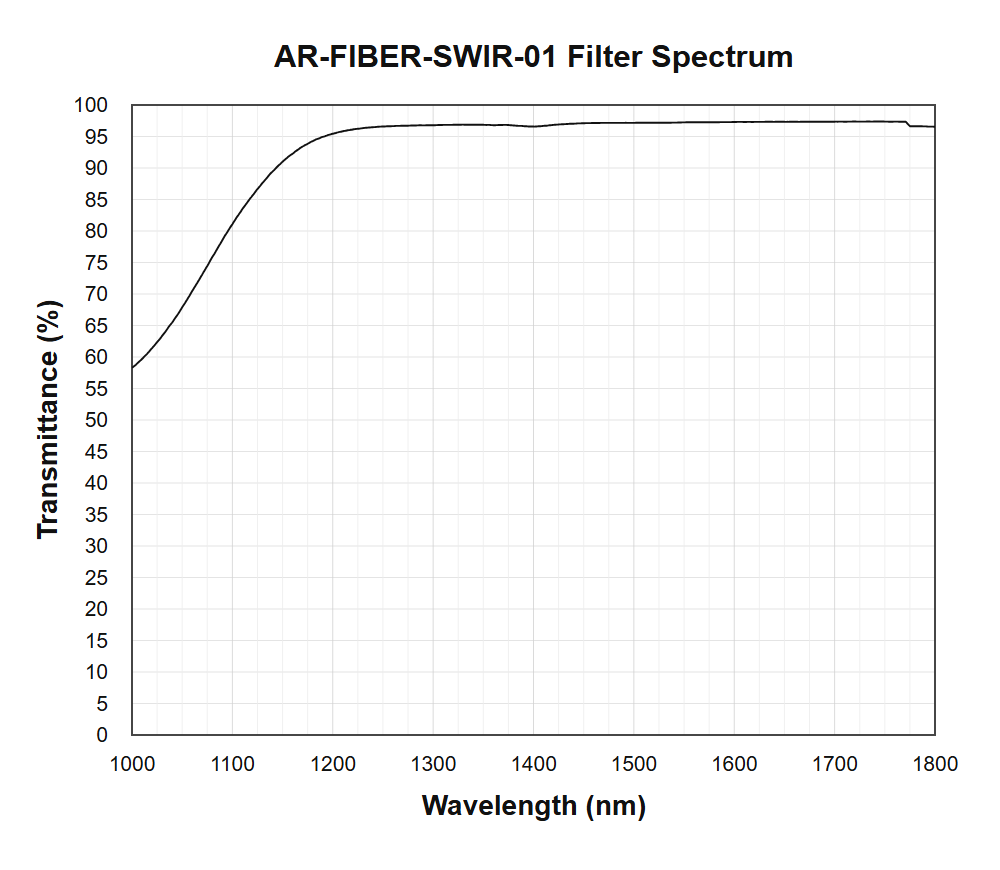

OPTICAL PERFORMANCE · AR-FIBER-SWIR-01
OPERATING CONDITIONS
Compare the source emission spectrum with the filter curve. Include the source bandwidth, rather than relying on the nominal wavelength alone.
Compare the complete measured response with your detector sensitivity. Confirm any additional blocking needed for your system.
Specify the working angle and whether the beam is collimated or converging. Confirm the required response under those conditions.
Provide the available mounting space, required shape, dimensions and thickness. Physical specifications will be confirmed for your assembly.
APPLICATIONS
Match the coating response to the wavelengths used in the fiber-optic path. Select the optical format for the coupling or interface assembly.
Compare the full transmission curve with the source bandwidth and detector response when specifying coated optical interfaces.
CUSTOM & ENQUIRY
Start with AR-FIBER-SWIR-01 and discuss the spectral response, physical format and operating conditions.
