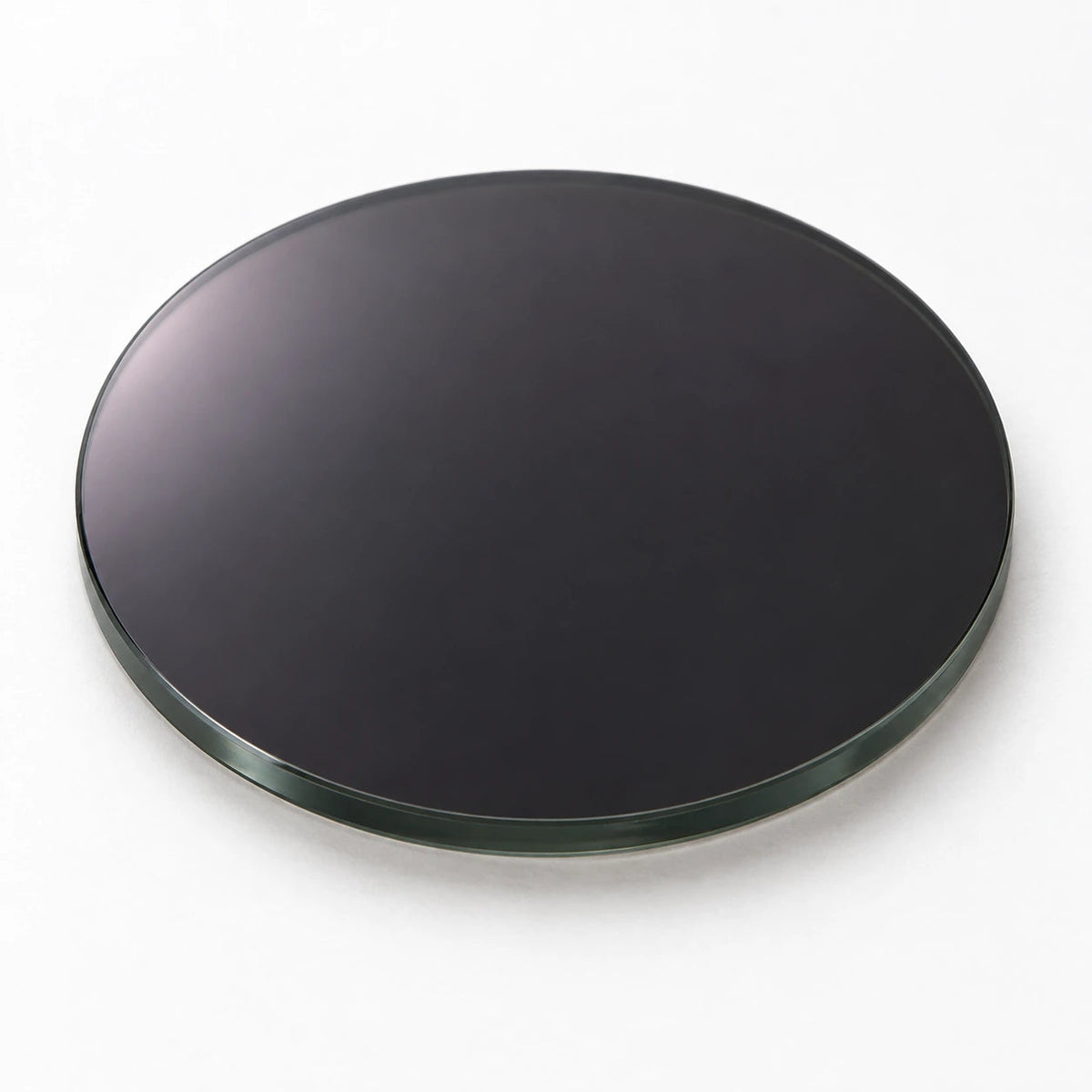

BBP-905 905 nm bandpass filter

BBP-905 is a bandpass filter. The main high-transmission region is approximately 874-928 nm.

Measured wavelength range: 300-1200 nm
Main-band width: ≈ 68.5 nm at half-peak transmission
Peak transmission: ≈ 94.5% at 885 nm
Transmission ≥80%: 874-928 nm
Transmission ≤5%: 300-854 nm; 953-1072 nm; 1076-1139 nm
Custom options: Wavelength response, dimensions and operating conditions

Values shown are sample measurements. Final specifications are agreed for your order.

905 nm nominal-channel bandpass filter (BBP-905)

BBP-905 is a bandpass filter. The main high-transmission region is approximately 874-928 nm. Use the full curve to match the desired signal and check secondary transmission before choosing the filter.

Optical performance

Measured wavelength range: 300-1200 nm. Performance outside this measured interval is not established by this curve.
Main band at half-peak transmission: Approximately 867.2-935.7 nm, giving a full width at half maximum (FWHM) of approximately 68.5 nm. This describes the main band only; other transmitted regions may remain.
Selected regions at or above 80% transmission: 874-928 nm. Approximate measured intervals.
Selected regions at or below 5% transmission: 300-854 nm; 953-1072 nm; 1076-1139 nm. Measured sample intervals; confirm the required blocking for your order.
Peak transmission: Approximately 94.5% at 885 nm. Peak wavelength is not the same as a defined centre wavelength.
Average measured transmission, 300-845 nm: 0.998%. Calculated from the factory sample data.
Average measured transmission, 885-925 nm: 92.758%. Calculated from the factory sample data.
Average measured transmission, 965-1000 nm: 0.593%. Calculated from the factory sample data.
Customization: We can customize stock and sample-book designs. Tell us the wavelength response, size and operating conditions you need.

These values come from the measured samples and help you choose a starting design. We will agree the final specification for your order. Custom versions have their own specifications and measured curves.

Applications to consider

905 nm illuminated inspection: Consider a source around 905 nm. Match the full source bandwidth to the curve, and check ambient-light rejection over the detector response.
Optical sensing channels: Evaluate the transmitted region for a source-and-detector pair. Secondary transmitted light may require additional blocking or a detector with a limited response.
Fluorescence instrument development: Consider the profile for an excitation or collection channel after matching both spectra. Confirm rejection of the excitation line and other transmitted bands in the complete optical layout.

Choosing this filter

Check the full wavelength range of your light source, the wavelengths your detector responds to, and how much unwanted light you need to block. Use the full curve when choosing a filter; the product code and peak do not tell the whole story.
Tell us the angle at which light reaches the filter and whether the beam is parallel or converging. For demanding rejection or high-power use, confirm the required blocking and power-handling specifications.

Custom options

Start with this stock or sample-book design, then tell us what you need to change. We can discuss the wavelength bands, transmission, blocking, angle, glass material, size and operating conditions with you, and agree a specification for your custom filter.

Catalog cross-reference: BP905-D01; earlier reference BBP-905. Include either reference in your inquiry.

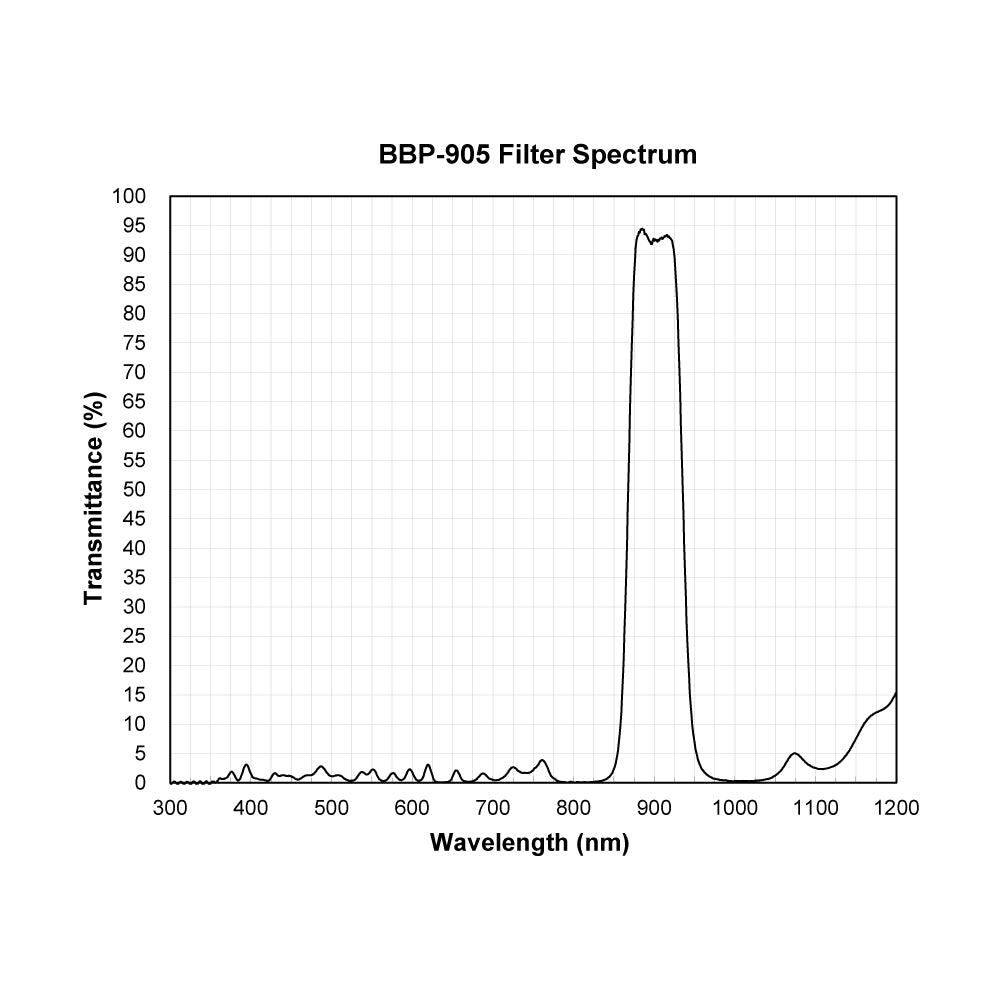

Transmission spectrum

Questions about BBP-905

Which part of the spectrum is most useful when choosing BBP-905?

The measured regions at or above 80% transmission are 874-928 nm. They are measured intervals, not guaranteed passband tolerances. Compare the full curve with the signal wavelengths you need to retain.

Which low-transmission regions are shown for BBP-905?

The measured regions at or below 5% transmission are 300-854 nm; 953-1072 nm; 1076-1139 nm. That threshold is a way to summarize this sample, not a guaranteed blocking specification. For a weak signal beside a bright unwanted wavelength, tell us the actual wavelengths and maximum leakage you can accept.

Discuss this filter with KUPO - include the product reference, source wavelength, working angle and required dimensions.
