Products / Hot Mirror & UV-IR Cut Filters / HM-730

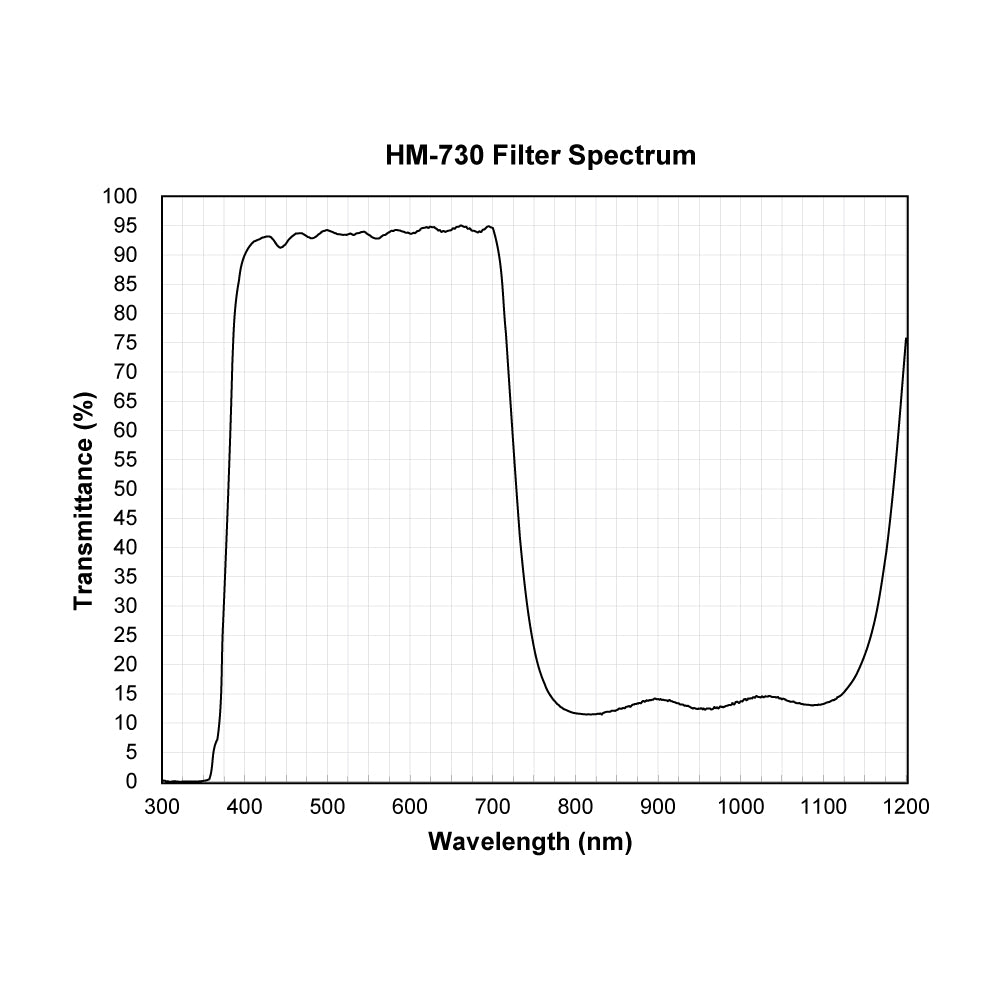

HM-730 spectral response — original published curveOpen full-size image ↗
Explore the optical responseView interactive spectrum ↗

Hot Mirror & UV-IR Cut Filters

HM-730UV / IR Cut-off Filters

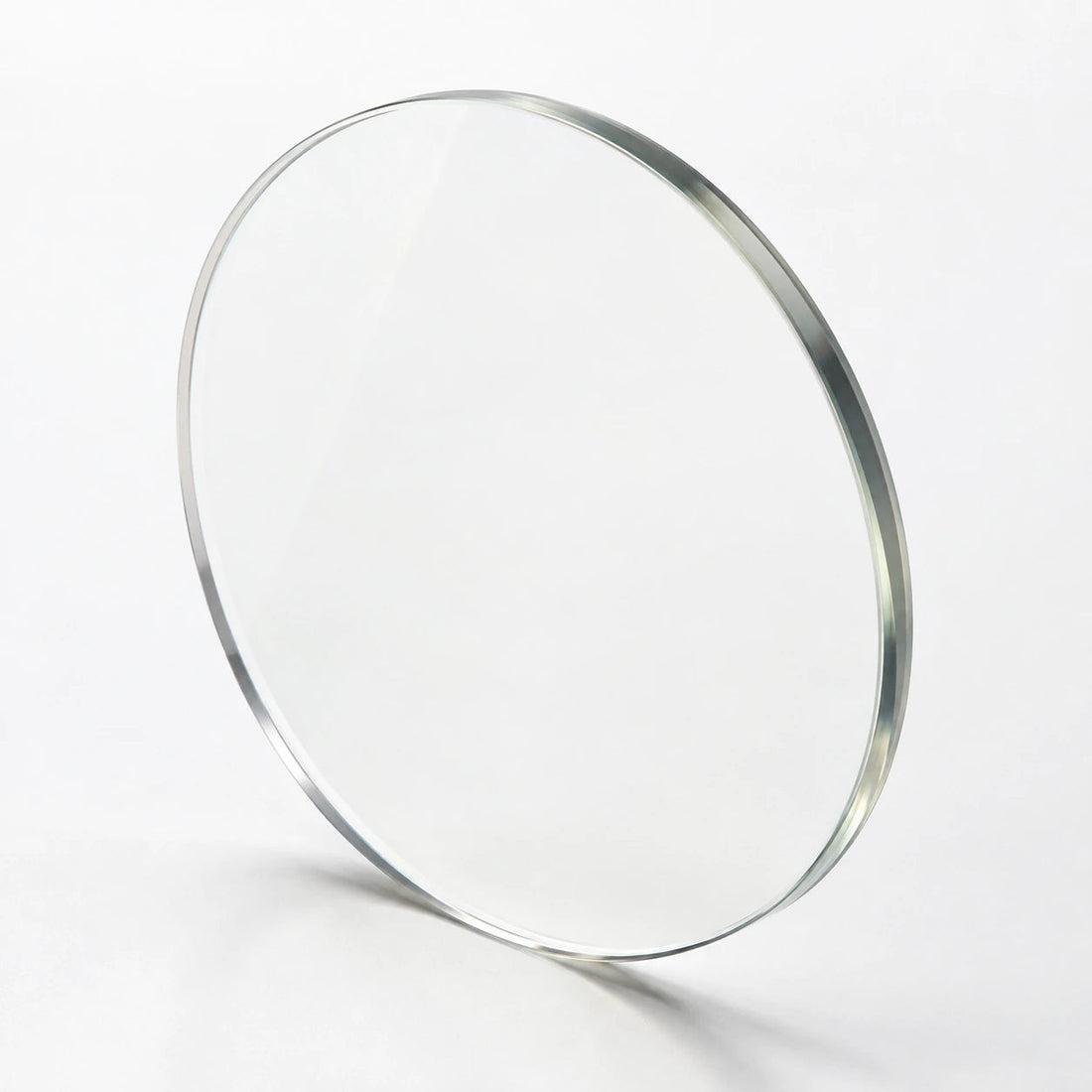

HM-730 is a visible-pass / infrared-attenuating filter. The main high-transmission region is approximately 388-714 nm. It can be considered when visible light is required and part of the longer-wavelength spectrum needs attenuation.

  • Product family: UV / IR Cut-off Filters
  • Measured wavelength range: 300–1200 nm
  • Published response: Transmittance

Measured interval is not the passband. Values shown are sample measurements. Final specifications are agreed for your order.

MEASURED OPTICAL RESPONSE

Read the light.

Original published sample data.

Download spectrum CSV ↓
Loading measured spectrum…

Nearest measured point shown; no interpolation or extrapolation. Original sample values are preserved, including values outside 0–100%. Samples are selection references, not production acceptance limits.

OPTICAL PERFORMANCE · HM-730

Read the numbers.
Understand the response.

Measured wavelength range

300-1200 nm. Performance outside this measured interval is not established by this curve.

Selected regions at or above 80% transmission

388-714 nm. Approximate measured intervals.

Selected regions at or below 5% transmission

300-362 nm. Measured sample intervals; confirm the required blocking for your order.

Peak transmission

Approximately 95.1% at 661 nm. Peak wavelength is not the same as a defined centre wavelength.

Average measured transmission, 400-700 nm

93.611%. Calculated from the factory sample data.

Average measured transmission, 750-1000 nm

13.200%. Calculated from the factory sample data.

These values come from the measured samples and help you choose a starting design. We will agree the final specification for your order. Custom versions have their own specifications and measured curves.

OPERATING CONDITIONS

Match the complete optical system.

Match the full source band.

Compare the source emission spectrum with the filter curve. Include the source bandwidth, rather than relying on the nominal wavelength alone.

Check unwanted response.

Compare the complete measured response with your detector sensitivity. Confirm any additional blocking needed for your system.

Define the incidence conditions.

Specify the working angle and whether the beam is collimated or converging. Confirm the required response under those conditions.

Confirm the physical fit.

Provide the available mounting space, required shape, dimensions and thickness. Physical specifications will be confirmed for your assembly.

APPLICATIONS

Where this profile can help.

Imaging & Photography

Manage exposure, unwanted wavelengths and reflection.

Architectural & Museum Lighting

Color, glare and spectral control for built environments and exhibits.

Medical & Microscopy

Optical components for illumination and instrument development.

Stage, Studio & Projection

Color, patterns and beam control for performance and projection.

Application examples are starting points for evaluation; suitability depends on the complete optical system.

CUSTOM & ENQUIRY

Tell us what
your design needs.

Start with HM-730 and discuss the spectral response, physical format and operating conditions.

Include in your enquiry

  • Target wavelengths and required transmission or blocking
  • Light source and detector model, or their spectra
  • Working angle, beam geometry and operating environment
  • Required shape, dimensions, thickness and mounting constraints
  • Sample quantity, expected order quantity and project timing
